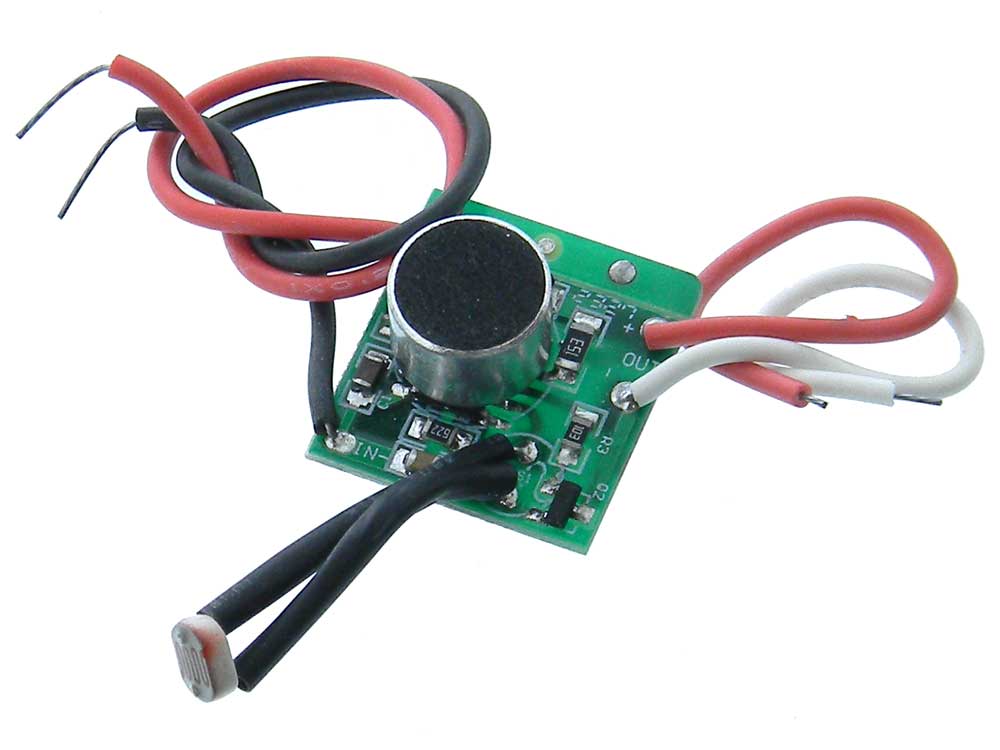

Sound & Light Controlled Module 3-30VDC


Sound & Light Controlled Module 3-30VDC
Images/38287-large.jpg   California Proposition 65 Warning
Stock Number: 38287 MI
  Be the first to review this item
$2.75

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Sound and light activated switching module that automatically detects the ambient sound and light intensity. When the sound level exceeds an adjustable threshold, the circuit activates, delays for a period of time, then turns off.
The light control function should be disabled for best sound use. (Light function over-rides Sound)
Power: 3-30VDC 4-24 Recommended
Current: <20mA Standby
NOTE Output + & Power + are Connected
Output: Open Collector Transistor
Max Load: 12W Max (ex: 1A @ 12VDC)
Sound Threshold Range: ~20db @ 1m
ON Time: ~45sec Fixed
L: 18mm (~11/16”) W: 18mm (~11/16”)
H: 10mm + Photosensor (~3/8”) WT: .08
