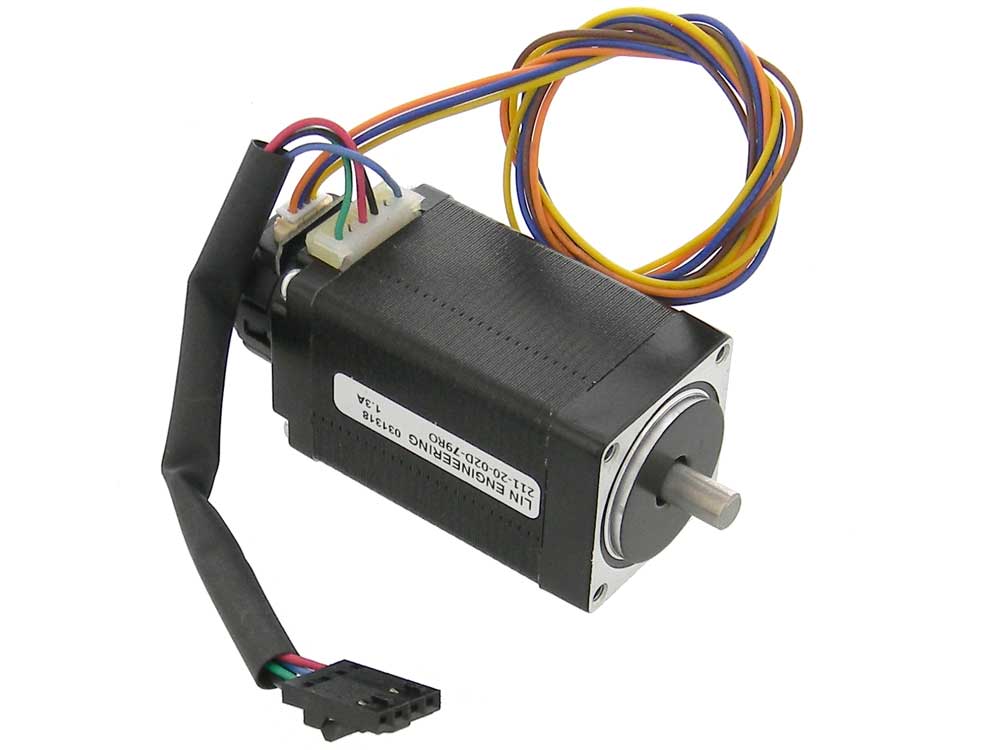

Stepmotor, 1.8deg. NEMA 11, 4 Lead - 1.3A- with Encoder


Stepmotor, 1.8deg. NEMA 11, 4 Lead - 1.3A- with Encoder
Images/36488-large.jpg Images/36488-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 36488 MS
  Be the first to review this item
$12.95


Availibilty: In Stock   Units: 69
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

MFG: LIN
P/N: 211-20-02D-79RO
COIL:1.3A/1.9Ohm
TYPE: 2 Phase Bi-Polar 4 lead
STEP ANGLE: 1.8 deg
Holding Torque: 0.12Nm (17oz-in)

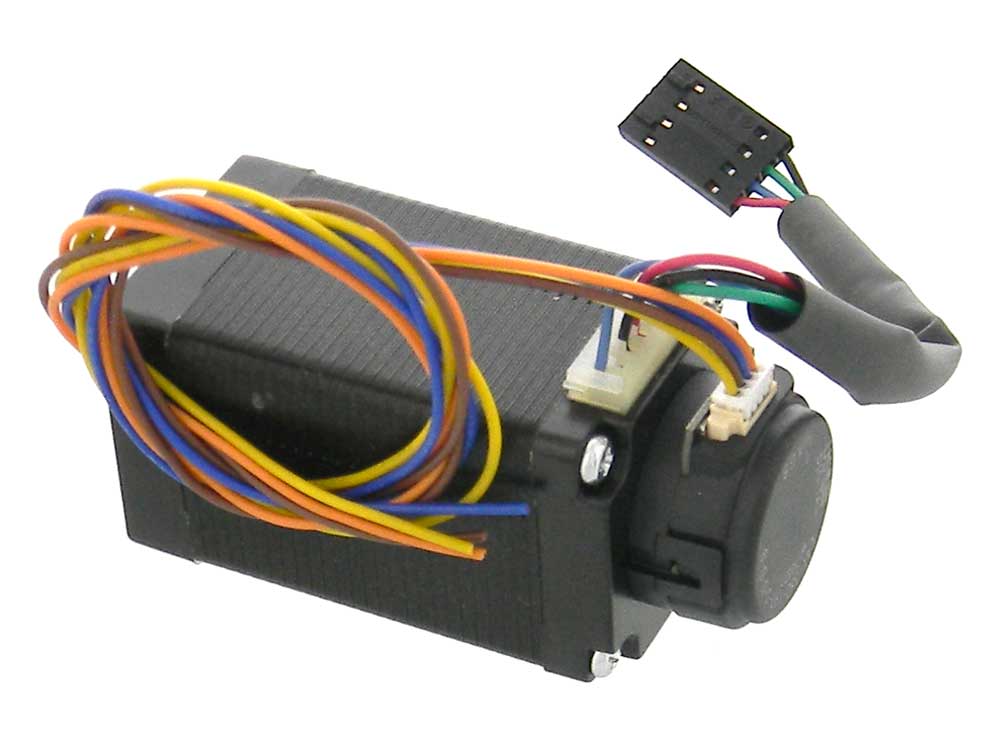

New Semi custom, Dual shaft, step motor, 5mm X 10mm steel Front shaft, 5mm Steel Rear shaft with Optical Encoder. 4 corner M2.5-0.45 mounting holes. ~4n. cable to Header connector (sorry no mate).
Encoder:
MFG: US Digital E4T-360-197
Type: 2 Phase-singled ended non-indexed
CPR: 360
Power: 5VDC @ ~30mA
Output: Logic Level (TTL)
4Pin Connector with 13" pigtail
L: 2-1/2" (Inc. Encoder) Sq: 1-1/8" (Motor) WT: .4
