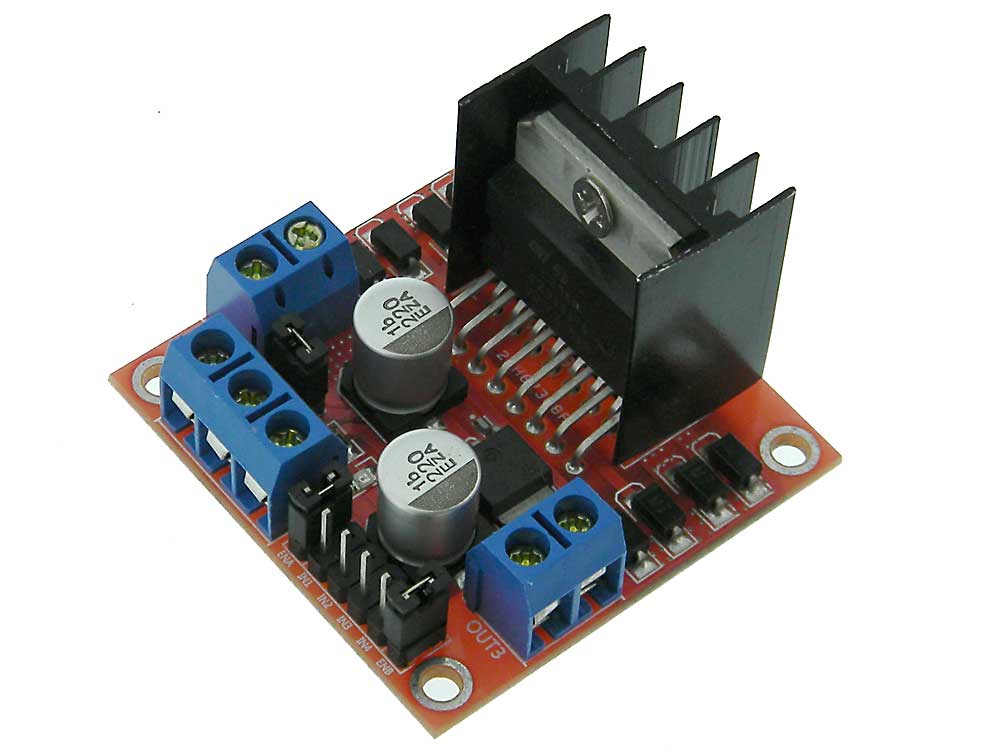

Stepper and DC Motor Driver Module, 2A, L298


Stepper and DC Motor Driver Module, 2A, L298
Images/34652-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 34652 MP
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$2.95
$2.25


Availibilty: In Stock   Units: 97
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET
Utilizes the L298 IC driver to power motors, solenoids and the larger NEMA 14-23 steppers. Designed to be driven from a Arduino or other micro controllers. Freeware available through www.arduino.cc.en
Drive Type: Dual “H” Bridge
Logic Power: 5VDC
Driver Power: 5-14VDC
Input Signal: TTL logic
Max Current: 2A/Phase (Max total power: 25W)
Onboard 5V regulator can be activated to supply Logic power when Driver Power input is between 7-14V
.1in Header pins for Logic input, Power Select
Terminal strips for Motor leads & Power.
LEDs for 5V Power
L: 1-3/4” W: 1-3/4’ H: 1-1/8” WT: .06

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Very useful
The fact that I can monitor both DC and stepper motors makes this product worth buying in itself.
