XT90H Mating Pair, 90Amp. Battery Connectors for RC Models


XT90H Mating Pair, 90Amp. Battery Connectors for RC Models
Stock Number: 38371 PL
  Be the first to review this item
$2.75


Availibilty: In Stock   Units: 145
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

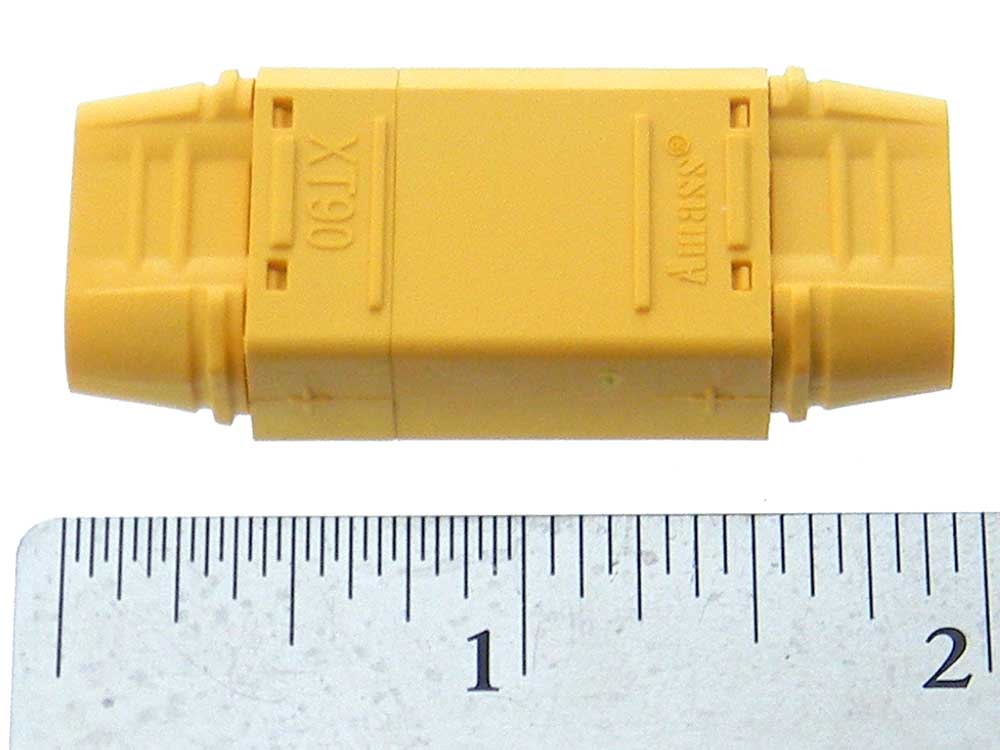

Mating Pair of 90A Power Connectors for RC Models.

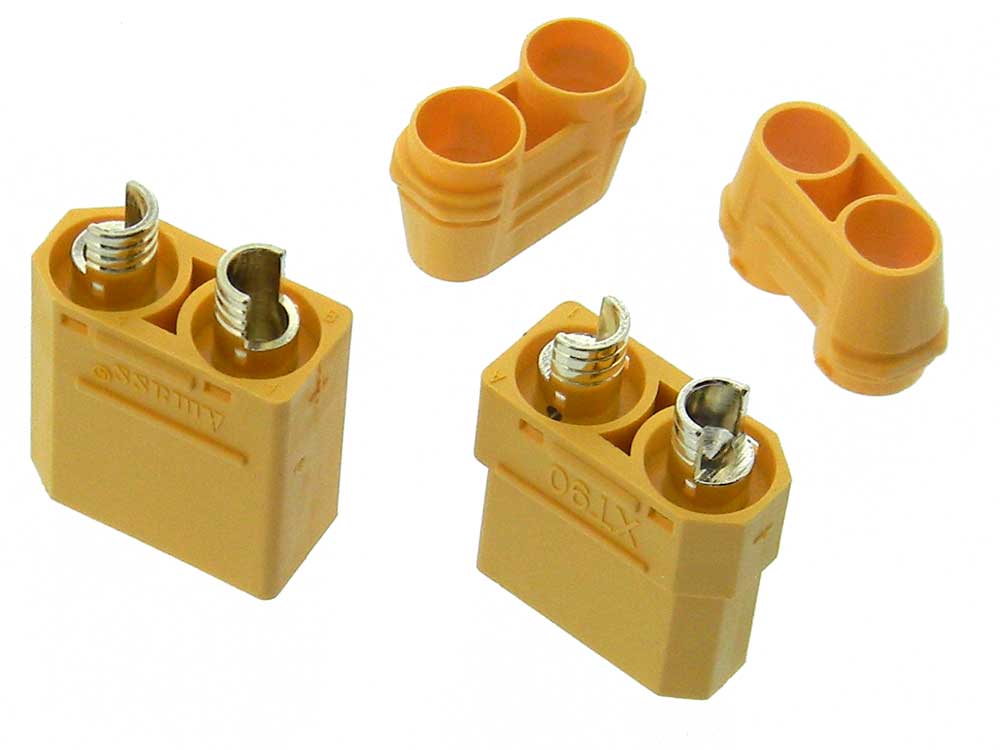

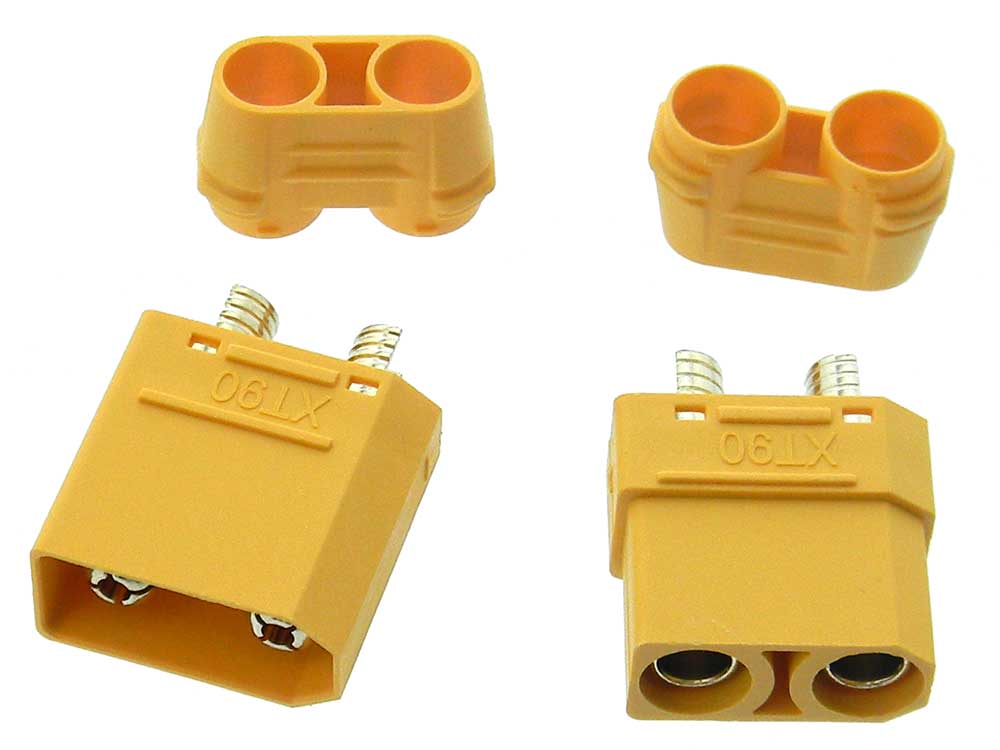

Amass Style XT90H Male & Mating Female connector
with snap on sheath (backshell) for the wire side of the connector.
Pins: Gold Plated Brass
Body: PA nylon (polyamide)
Continuous Current: 40A Max
Instantaneous Current: 90A
Max Voltage: 500V
Initial Resistance: ~.56m Ohm
Connections: Solder Cup
Wire: 10AWG
Operating Temp: -20°C to 120°C

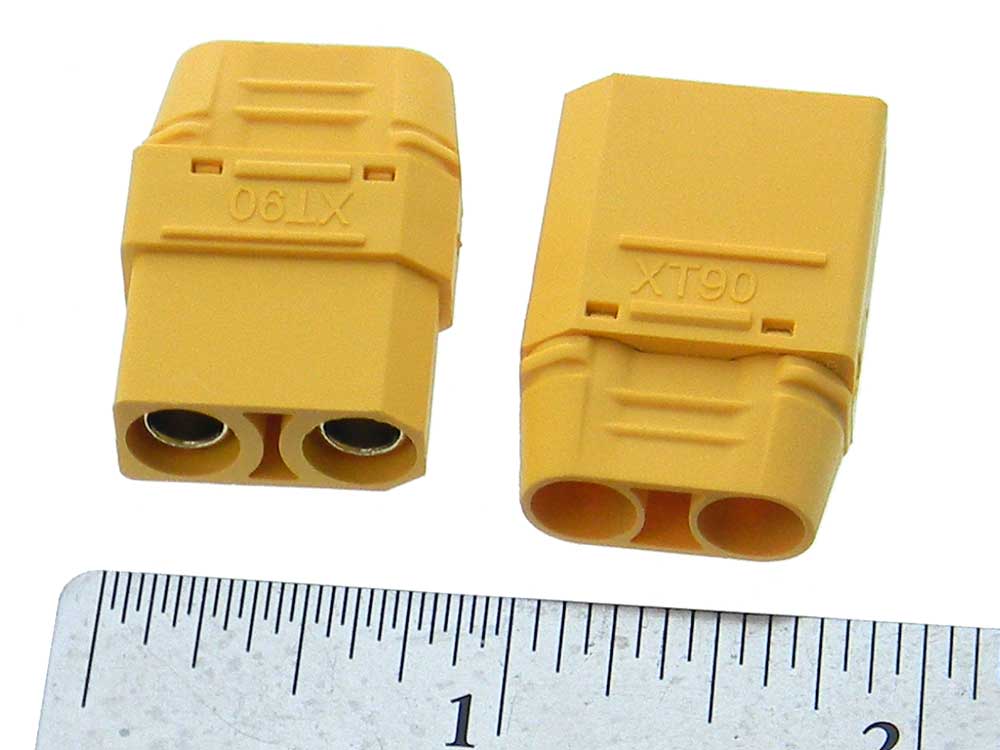

Female
L: 29.7mm W: 20.8mm H: 9.9mm
Male
L: 30.7mm W: 20.8mm H: 9.9mm
WT: .04/pair
